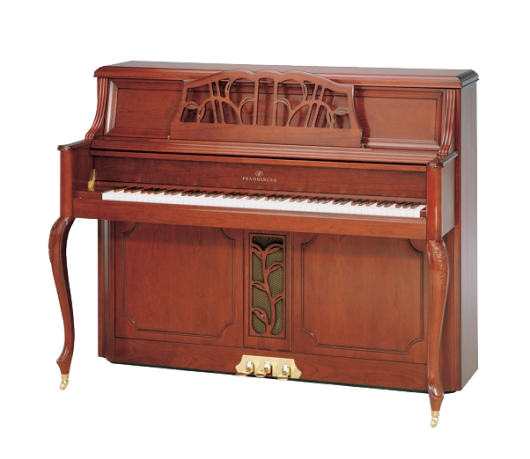

46″ Designer Console
Weight: 503 lbs.
Height: 46 1/2″
Width: 59″
Soundboard Area: 1926 in²
#1 Bass String: 45 1/5″


PINBLOCK: 15-ply laminated American hard maple
TUNING PINS: Nickel plated, cut thread
SHARPS: Genuine ebony
STRINGS: Made of Roslau music wire
MATERIAL: Genuine buckskin material
PRESSURE BAR: Nickel plated
HAMMERS: Premium grade, German, blue, double-coated, “T” wired
KEYS: Premium spruce, balanced, weighted, maple buttons
ACTION: Premium German wood rail
SOUNDBOARD: Bolduc, solid Canadian spruce, tapered
BRIDGES: Hard rock maple
RIBS: White spruce, pre-curved, notched to liner
PLATE: Traditional sand cast
FALL COVER: Slow close
AGRAFFES: Bass and tenor (JP-125, JP-131)
PEDALS: Soft with “quiet response” sostenuto, full sustain
WARRANTY: 10 year limited
Available Finishes: Brown Oak Satin, Cherry Satin
